INTRODUCTION

Not every retail environment is a standard supermarket shelf at room temperature. Newton Pro fills the gap where Newton Core+ stops:

  • Freezer cabinets where labels must survive −25°C without display degradation
  • Outdoor garden centres and bakeries where heat, rain, and UV exposure destroy standard labels
  • Premium department stores wanting larger, more impactful displays up to 12.2″
  • Luxury and cosmetics retail needing full-colour shelf imagery

Every Pro model carries IP68 dust and water protection and runs on the same AIMS cloud software and gateway infrastructure as the Core+ range – so you can deploy Pro and Core+ labels in the same store without duplicate infrastructure costs.

NEWTON PRO MODELS

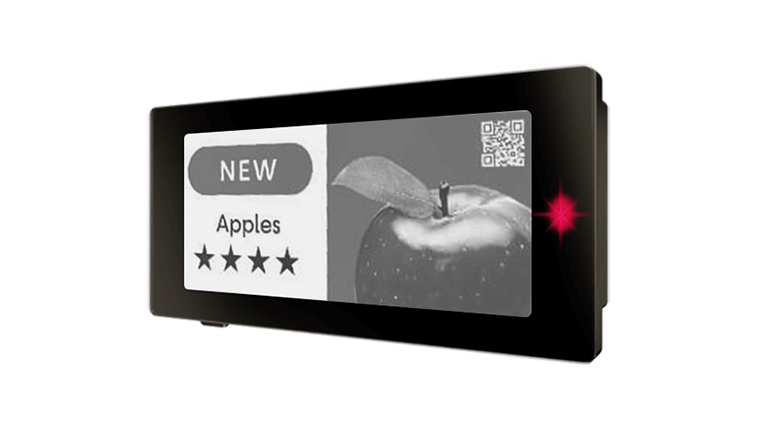

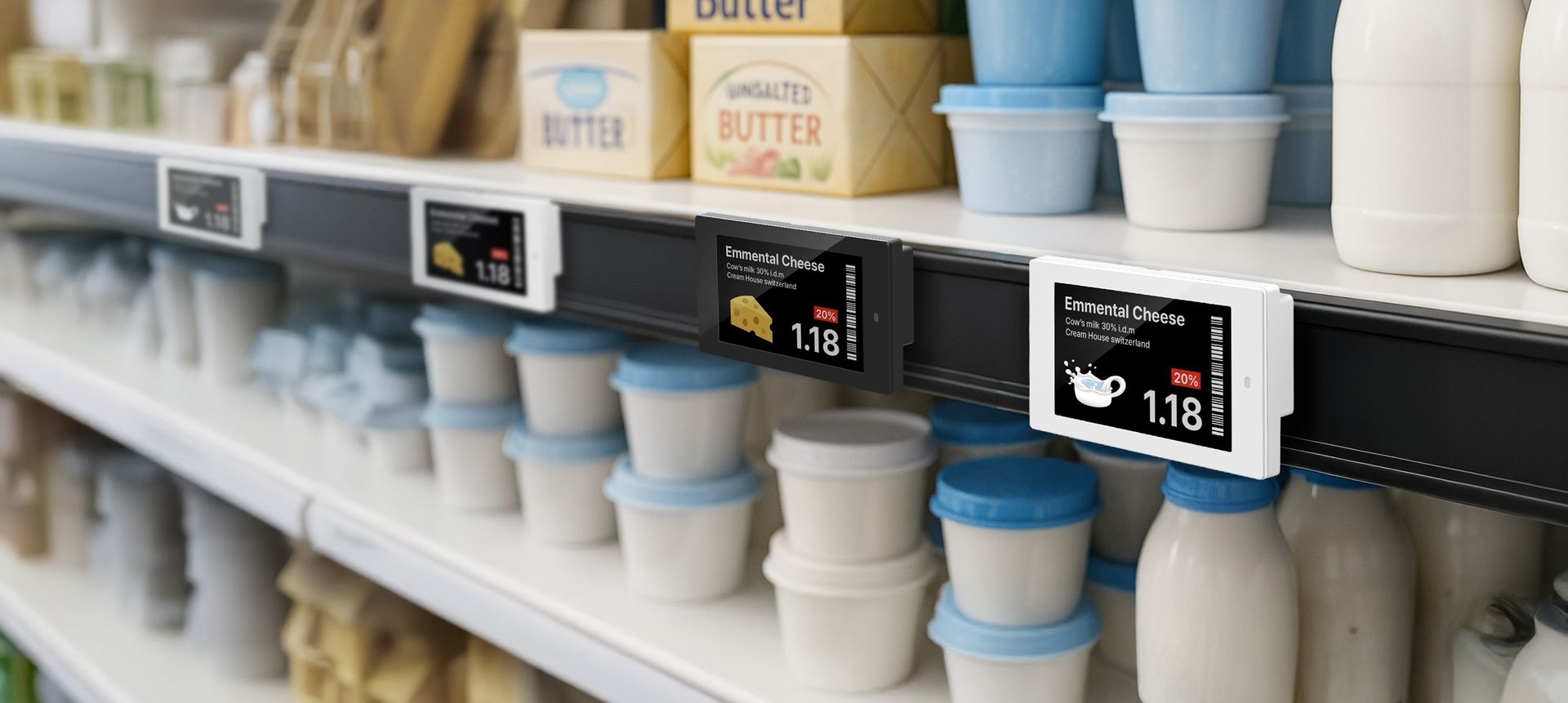

Newton Pro – The Full-Featured Professional Label

The benchmark professional ESL. 16 sizes from 1.6″ to 12.2″ with four-colour e-ink (BWRY), IP68 housing, a programmable button for staff interactions, and NFC. The frameless design improves shelf-edge visibility. Best choice for retailers who need durability, larger formats, or the programmable button that Core+ does not have.

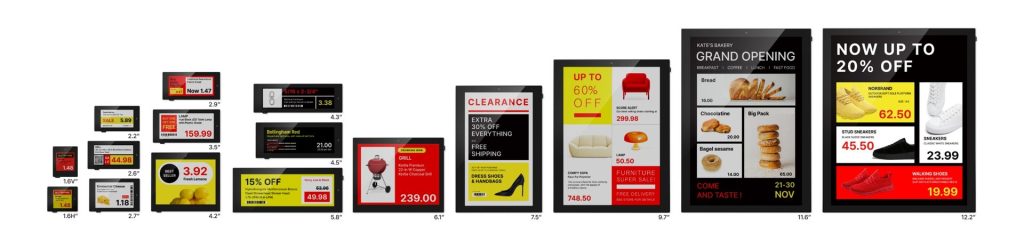

AVAILABLE SIZES

1.6″ (H & V) | 2.2″ | 2.6″ | 2.7″ | 2.9″ | 3.5″ | 4.2″ | 4.3″ | 4.5″ | 5.8″ | 6.1″ | 7.5″ | 9.7″ | 11.6″ | 12.2″

KEY SPECS

  • Display: 4-colour BWRY | IP68 | Programmable button | NFC
  • Battery: CR2450 (2–6 per label) | 10+ year life
  • Operating temperature: 0°C to 40°C

BEST FOR: DEPARTMENT STORES, ELECTRONICS RETAILERS, DIY, PHARMACIES NEEDING LARGE-FORMAT LABELS

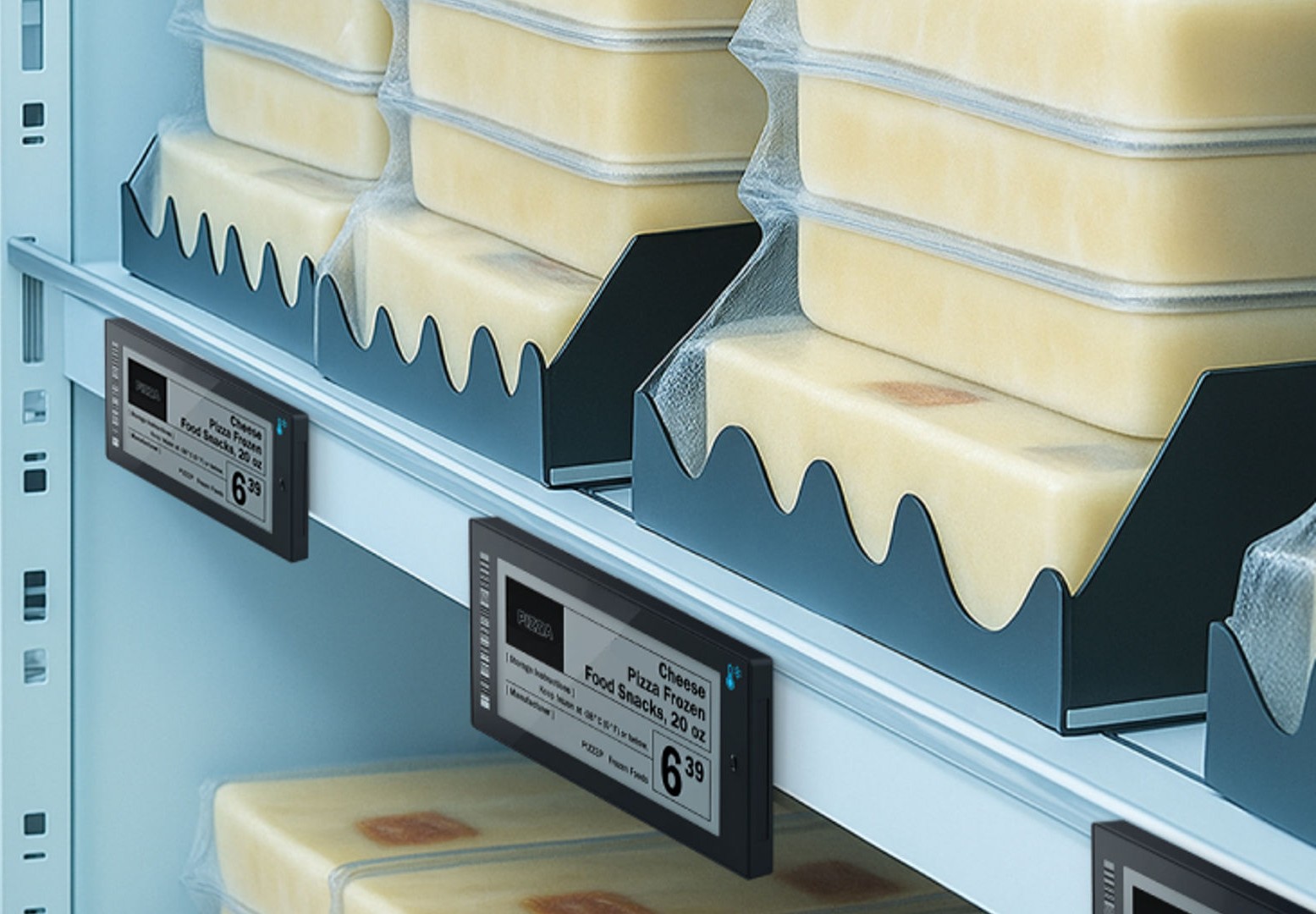

Newton Pro Freezer – Built for Cold Chain

All the capabilities of Newton Pro, re-engineered for frozen and refrigerated environments. Operates reliably from −25°C to 0°C using cold-rated CR2450D batteries and sealed IP68 housing. Black-and-white only – colour e-ink pigments do not perform reliably at sub-zero temperatures, so SoluM uses a two-colour panel that maintains sharp contrast in the cold.

AVAILABLE SIZES

5 sizes: 2.2″ | 2.6″ | 2.9″ | 3.5″ | 5.8″

KEY SPECS

  • Display: 2-colour BW | IP68 | Programmable button | NFC
  • Battery: CR2450D (cold-rated) | 10+ year life
  • Operating temperature: −25°C to 0°C

BEST FOR: FROZEN FOOD AISLES, CHILLED BEVERAGE SECTIONS, COLD-CHAIN LOGISTICS, ICE CREAM COUNTERS

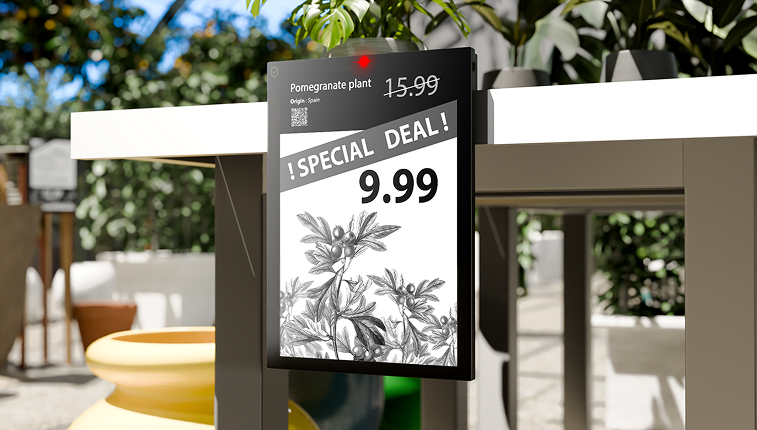

Newton Pro Extreme – Built for Heat, Cold, and UV

The widest operating range in the Newton range: −20°C to 60°C. A UV-protective weatherable plastic window prevents screen degradation from direct sunlight. Built for environments where heat, cold, and outdoor exposure would destroy a standard label.

AVAILABLE SIZES

4 sizes: 2.9″ | 4.2″ | 7.5″ | 11.6″

KEY SPECS

  • Display: 2-colour BW | IP68 | UV-protective window
  • Battery: CR2450 | 5+ year life
  • Operating temperature: −20°C to 60°C

BEST FOR: OUTDOOR GARDEN CENTRES, BAKERY HEATING CABINETS, BUILDING SUPPLY YARDS, BBQ AND OUTDOOR COOKING SECTIONS

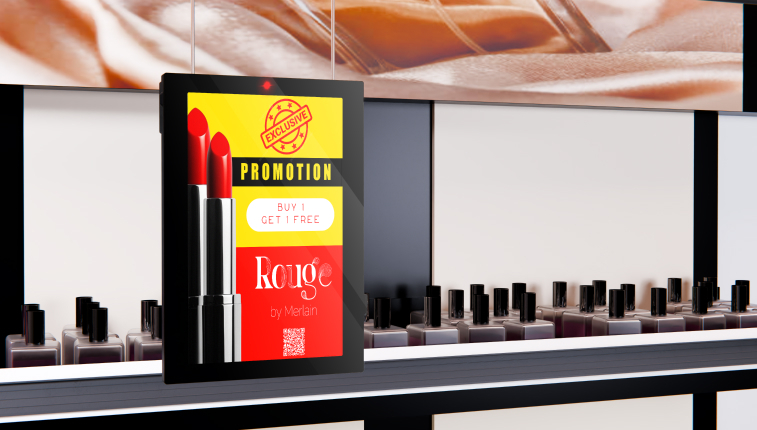

Newton Pro Full Colour – Shelf Labels That Look Like Printed Posters

A six-colour e-paper display (black, white, red, yellow, green, blue) with a dithering algorithm that produces vibrant, realistic product imagery. This model replaces printed shelf posters – show product photos, brand logos, and colour-coded category labels in full colour on a battery-powered e-paper screen with no wiring.

AVAILABLE SIZES

3 sizes: 7.3″ | 8.2″ | 13.3″

KEY SPECS

  • Display: 6-colour KWRYGB with dithering | IP68
  • Battery: Rechargeable pouch (3,500–7,000 mAh) | 10+ year life with 1 update/day
  • Operating temperature: 0°C to 50°C

BEST FOR: COSMETICS, WINE, PREMIUM FMCG, LUXURY RETAIL – ANYWHERE THAT SHELF IMAGERY DRIVES PURCHASE DECISIONS

PRO RANGE – QUICK COMPARISON

Model Sizes Display Temp Range Battery
Newton Pro 16 sizes (to 12.2″) 4-colour BWRY 0°C to 40°C 10+ years
Pro Freezer 5 sizes (to 5.8″) 2-colour BW −25°C to 0°C 10+ years
Pro Extreme 4 sizes (to 11.6″) 2-colour BW −20°C to 60°C 5+ years
Pro Full Colour 3 sizes (to 13.3″) 6-colour KWRYGB 0°C to 50°C 10+ years

FREQUENTLY ASKED QUESTIONS

Yes. All Newton models – Core+, Pro, and Special – run on the same gateway network and AIMS cloud platform. You can mix Core+ and Pro labels freely across departments without separate infrastructure.

Colour e-ink pigments do not perform reliably at sub-zero temperatures. SoluM uses a two-colour (BW) panel for the Pro Freezer because it maintains sharp contrast and fast refresh rates in cold environments where colour panels would degrade or fail.

Yes. ELSE can arrange a sample unit for on-site testing in your specific environment. Contact us to request a sample.

Need a Label That Handles More?

Tell us about your store environment – temperature range, shelf format, and product category – and we will recommend the right Pro model. We can also arrange a sample unit for on-site testing before you commit to a full deployment.

Request a Quote Request a Sample
